Product Overview

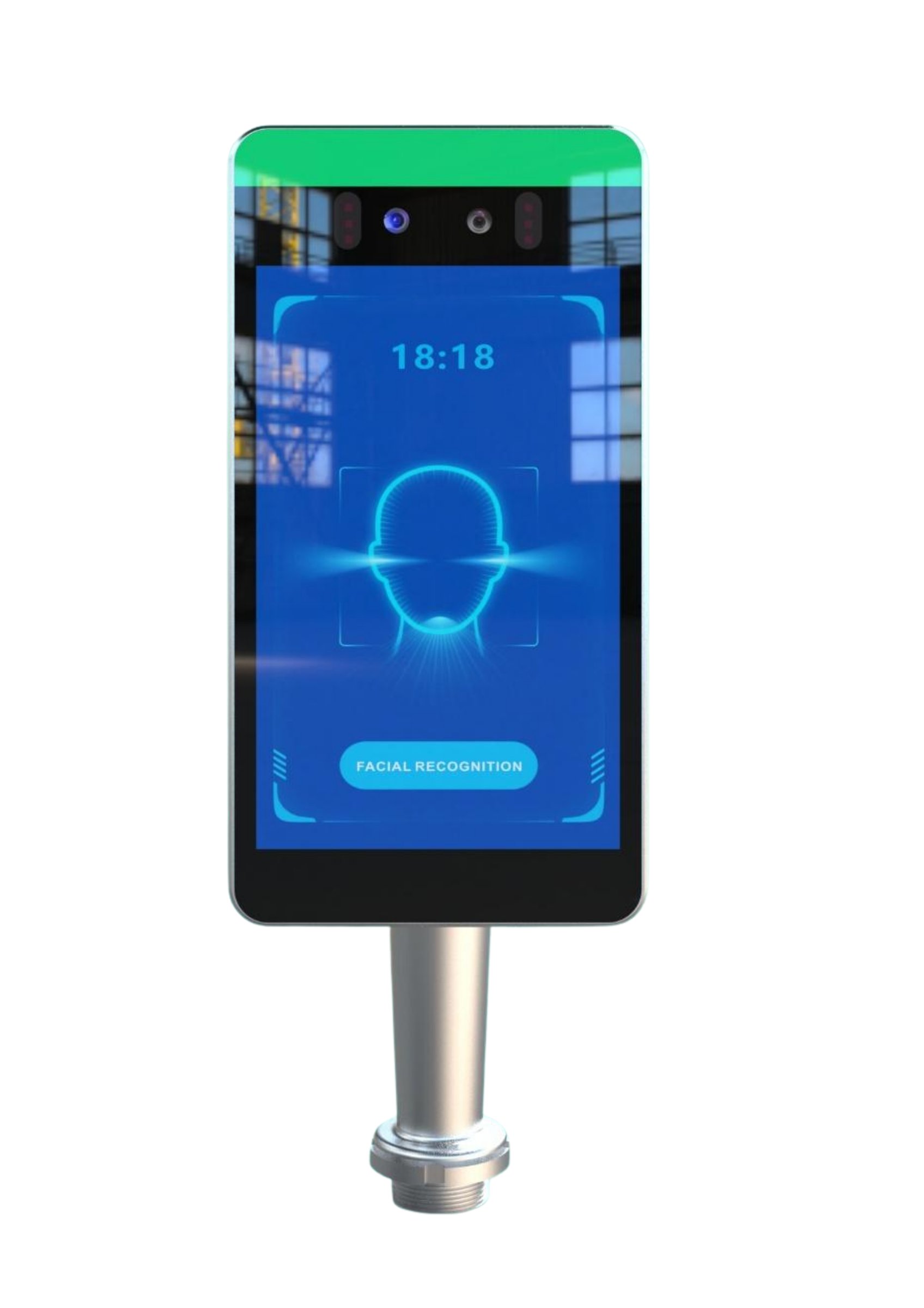

KRUPP NEXTGEN FACEPOD FS10 is a next-generation AI facial recognition device for secure access control, offering reliable performance, high accuracy, and seamless system integration for mutil-purpose use. The device supports up to 50,000 users and 20,000 access logs while supporting multi-factor authentication including card and facial recognition. It seamlessly integrates with turnstile systems, enabling automatic access upon successful verification.
Key Features
| • | High-Grade Protection: Surface material features Mohs grade 7 tempered glass which is explosion-proof, anti-collision, and anti-scratch. |
| • | Industrial Reliability: Screen service life of more than 60,000 hours, capable of working 7*24 hours uninterrupted all year round. |
| • | Turnstile Linkage: Connect the passage gate to open the door after successful face comparison. |
| • | Advanced Imaging: Binocular visible light + infrared 2 million pixels with ultra-wide dynamic range, supporting liveness detection and anti-backlight. |
| • | Online Management: With server-side software, multiple terminals can be compared and summarized together. |
Basic Parameters
| Operating system | Android 11 system |
| Memory | 2GB RAM + 16GB Storage |
| Performance | Quad-core 2.0GHz, built-in convolutional neural network accelerator NPU, and supports 1T computing power |
| LCD Screen | 10 inches size, 800*1280 resolution, IPS full viewing angle |
| Screen Brightness | 500cd/m² |
| Camera | Binocular visible light + infrared 2 million pixels, ultra-wide dynamic range, support liveness detection, anti-backlight and strong light; shooting focal length can be selected |
| Touch screen | 10-point G+G capacitive touch, any point can withstand more than 50 million touches |
| Audio & Indicator | Built-in 8Ω/3W horn; Red, white and green LED lights |
| Connectivity | High-performance WIFI with support for 802.11B/G/N |
| External interface | 1 x USB/OTG, 1 x RJ45 standard interface, 1 x relay output, 1 x DC power supply, 1 x Wigan, 1 x 232/485 |
Working Parameters
| Electrical | Voltage 12V, Current 3A |
| Environment | Working temperature -20°C ~ +70°C, Humidity 5% ~ 93%RH non-condensing |
| Appearance | Body process: Aluminum alloy CNC carving surface anodizing; Color: Black + silver |
| Installation & Accessories | Installation method: Wall mounting/columns; Accessories: Door lock, exit button |
